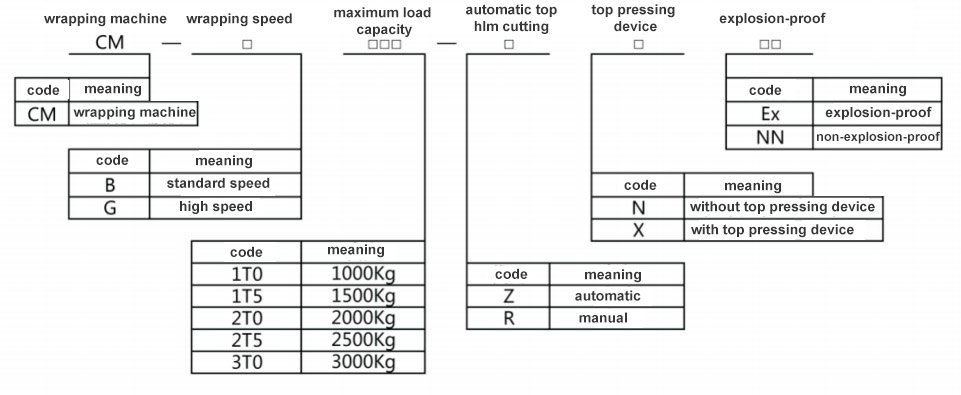

Product Configuration Table

Example: CM-B1T5-ZPNEx indicates the parameters of the wrapping machine: wrapping speed at standard level, maximum load capacity of 1500 kg, with automatic top film cutting, without top pressing device, and suitable for explosion-proof applications.

Wrapping speed: Low speed: 20–25 pallets/hour; high speed: 60–90 pallets/hour.

Main functions

• Automatic pallet infeed, automatic wrapping, automatic film clamping, automatic film cutting, automatic film support, automatic pallet outfeed, and automatic reset

• Independent motor control for turntable rotation, film feeding, and film carriage lifting; frequency-converter adjustable speeds; smooth start and stop function

• Equipped with wear-resistant rubber rollers, ensuring long service life, minimizing film damage, and guaranteeing flat, smooth, and uniform film stretching

• Film carriage adopts power pre-stretch mechanism, achieving up to 300% pre-stretch ratio, reducing film consumption

• Explosion-proof and non-explosion-proof versions available

• Full PLC control, with spare I/O points reserved; independent computer connection interface provided; hierarchical management and control authority setting

Main Technical Parameter
